Custom Cnc Job Works

We specialize in offering high-quality CNC Precision Components Job Work, tailored to meet the specific requirements of our clients with precision and efficiency. Our services ensure superior accuracy, reliability, and adherence to industry standards.

Get Latest Price

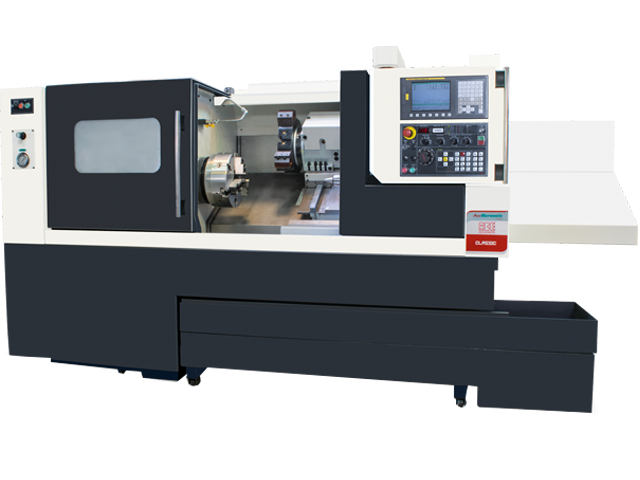

CHUCK SIZE	150 X 400 LENGTH
CHUCK SIZE	200 X 500 LENGTH
CHUCK SIZE	250 X 1000 LENGTH

X-Y-Z Axis Travel – Table Size	500 x 800 x 500 mm – BT -40
X-Y-Z Axis Travel – Table Size	500 x 1000 x 800 mm – BT-50
X-Y-Z Axis Travel – Table Size	1100 x 600 x 600 mm – BT-50
X-Y-Z Axis Travel – Table Size	1000 x 2000 x 1000MM – BT - 50

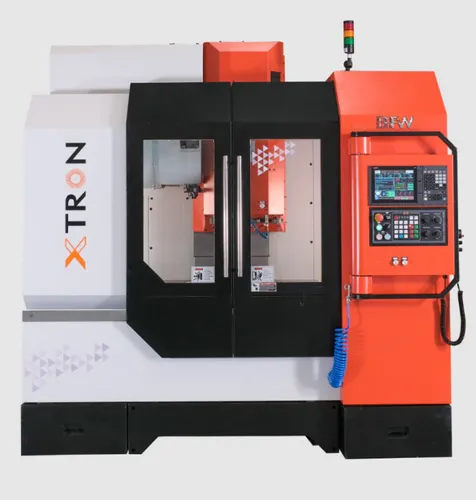

CNC/ VMC Machine

We offer a comprehensive range of CNC and VMC machine services, along with precision job work, to meet the diverse needs of our clients. Our solutions ensure high accuracy, efficiency, and superior quality in every project.

Get Latest Price

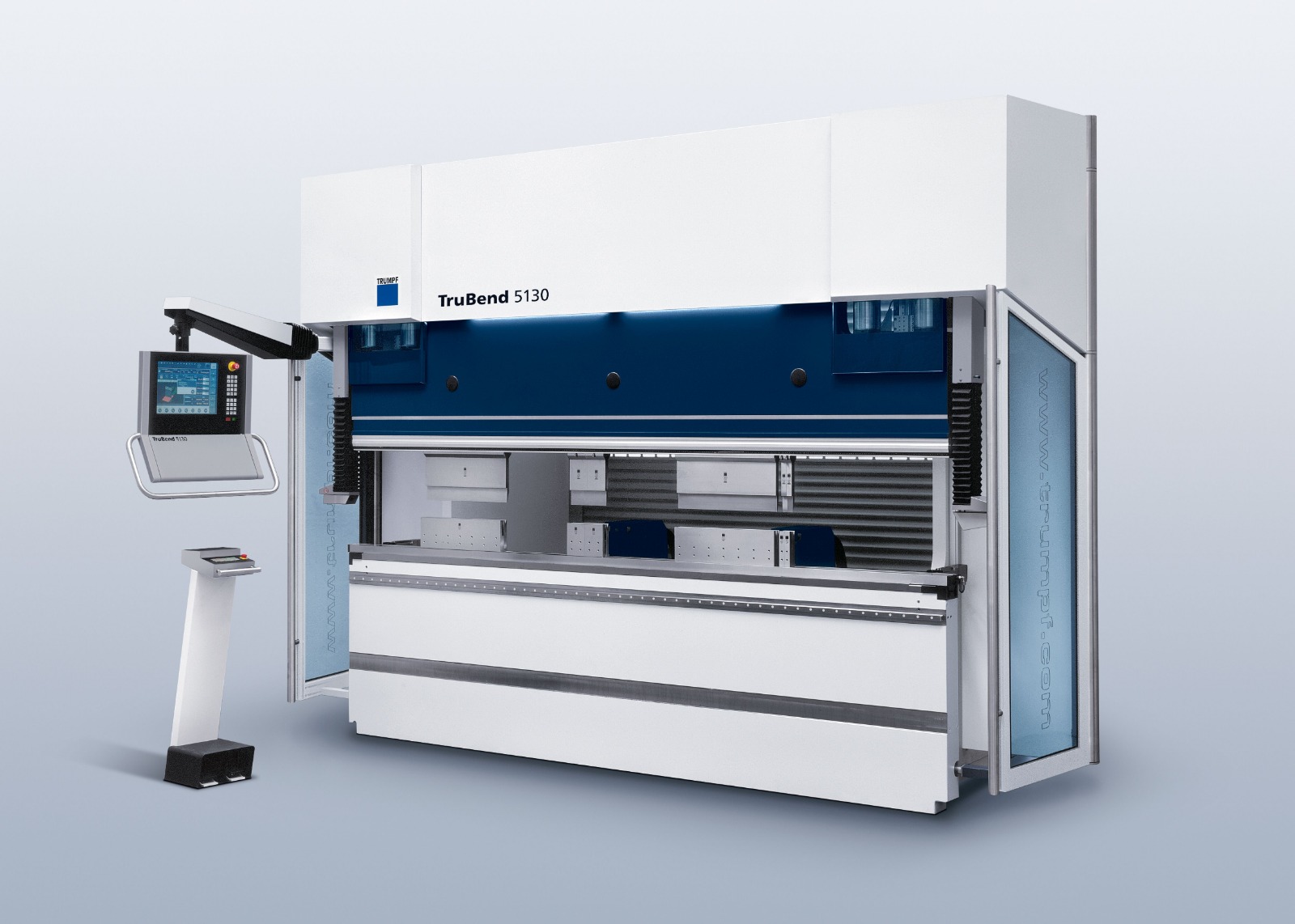

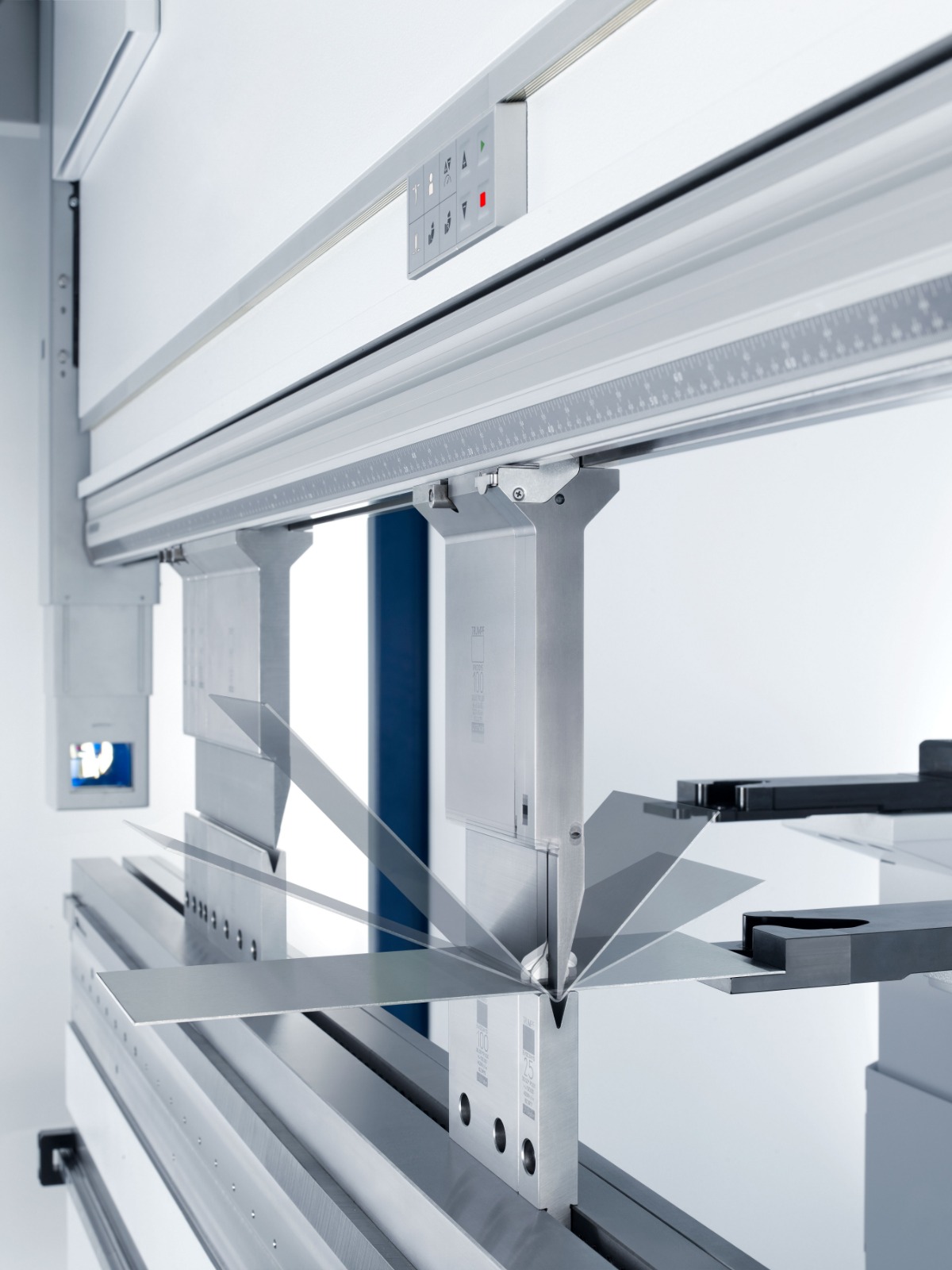

CNC Banding Machine

TruBend 5130
Press force	kN	1300
Bending length	mm	3230
Width between columns	mm	2690
Max. table/press beam distance	mm	505 / 735[1]
Usable open height	mm	385 / 615[1]
Throat depth	mm	420
Working height[2]	mm	1095 – 1115
Press beam inclined position	mm	± 10

Speeds[3]
Y axis rapid traverse	mm / s	220
Y axis press operation[4]	mm / s	max. 25[4]
Y axis return speed	mm / s	220
X axis[5]	mm / s	1000 / 1750
R axis	mm / s	330
Z axis[5]	mm / s	1750 / 2500

Precision
Y axis	mm	220
X axis	mm	0.04
R axis	mm	0.08

Traverse paths
Y axis stroke	mm	215 / 445[1]
X axis traverse path	mm	600
Max. stop range in X[5]	mm	860 / 1000
R axis traverse path	mm	250

User interface		Touchpoint Bend
Dimensions and weight[6]
Length x width	mm	3980 x 1800
Height	mm	2375 / 2835[1]
Weight	kg	10700 / 11800[1]

[1] Second value for the enlarged design respectively (option).
[2] With lower tool height of 100 mm. Working height varies depending on the height of the material being set up on the machine.
[3] Traverse speed can be freely programmed.
[4] With working speed of 10 mm/s.
[5] Depending on the selected back gauge.
[6] Data relates to the basic machine without options.

Subject to alteration. Only specifications in our offer and order confirmation are binding.

Get Latest Price

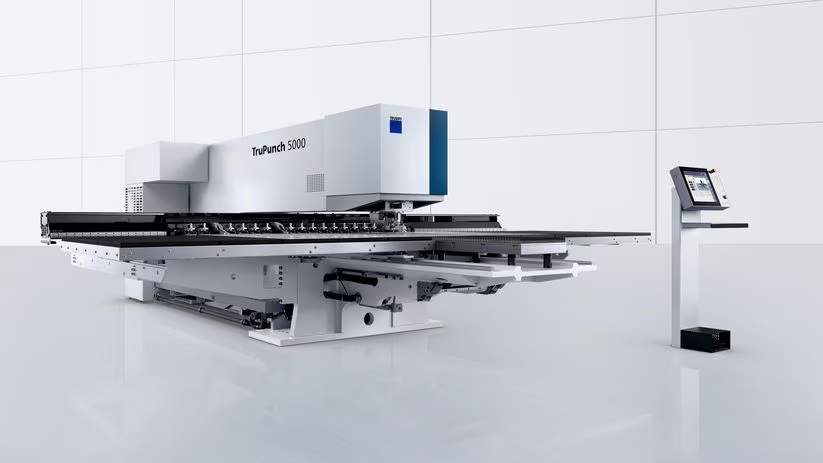

CNC Punching Machine

Get Latest Price

Lets Talk

Tell us your specifications, and we'll help you find the perfect quotes.

With a strong commitment to quality and innovation, PARAS PRESS TECH AUTOMATION ensures that all our products meet the highest industry standards, offering superior functionality and cost-effectiveness for our clients.
